TLP627-2(F) - Toshiba

Description: Toshiba TLP627-2(F) DC Input Darlington Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Download TLP627-2(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP627-2(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

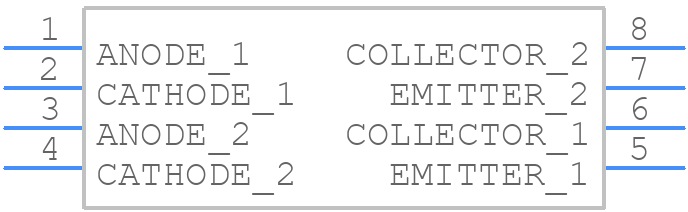

TLP627-2(F) - Toshiba - PCB symbol

PCB Footprints

TLP627-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)

3D Models

TLP627-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP627-2(F)
Part Number TLP627-2(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C4 (8PDIP)
Released Date Nov 25, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP627-2(F) Details

Manufacturer Part Number:
TLP627-2(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, 11-10C4, DIP-8
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
300 V
Configuration:
SEPARATE, 2 CHANNELS WITH BUILT-IN DIODE AND RESISTOR
Current Transfer Ratio-Min:
1000%
Current Transfer Ratio-Nom:
4000%
Dark Current-Max:
200 nA
Forward Current-Max:
0.025 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
2
On-State Current-Max:
0.15 A
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
DARLINGTON OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.00004 s
Surface Mount:
NO
Terminal Finish:
Pure Tin (Sn)

TLP627-2(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP627-2(F) is 3.3V to 5V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signal is within the recommended voltage range.
The maximum current rating for the TLP627-2(F) is 50mA per channel.
To ensure ESD protection, use a TVS diode or a transient voltage suppressor in parallel with the input signal, and follow proper PCB layout guidelines to minimize ESD exposure.
The typical propagation delay for the TLP627-2(F) is around 10ns, but this can vary depending on the operating voltage and temperature.
