Part Image

TLP700(F) - Toshiba

Description: Toshiba, TLP700(F) DC Input IGBT Gate Drive, MOSFET Output Optocoupler, Surface Mount, 6-Pin SDIP

Download TLP700(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

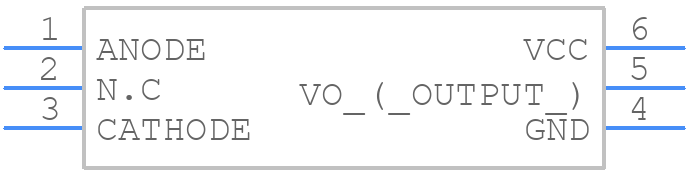

Symbol
TLP700(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP700(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5J1S (H=4.25mm)
click to zoom
3D Models
TLP700(F) - Toshiba - 3D model - Small Outline Packages - 11-5J1S (H=4.25mm)
click to zoom

TLP700(F) Details

  • Manufacturer Part Number:

    TLP700(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

TLP700(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP700(F) is 4.5V to 30V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input voltage is within the recommended range and that the output is properly terminated.
  • The maximum current rating for the TLP700(F) is 100mA per channel.
  • The TLP700(F) is rated for operation up to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability.
  • To protect the TLP700(F) from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP700(F) Overview

Use the download button to access the TLP700(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler
