TLP700AF - Toshiba

Description: TOSHIBA - TLP700AF - Optocoupler, Gate Drive Output, 1 Channel, Surface Mount DIP, 6 Pins, 5 kV

Download TLP700AF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP700AF model

Email notifications will be applied after download.

Send part feedback

Symbol

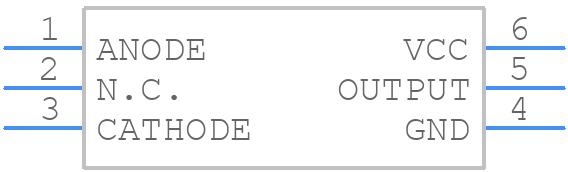

TLP700AF - Toshiba - PCB symbol

PCB Footprints

TLP700AF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5J101S_2022

3D Models

TLP700AF - Toshiba - 3D model - Small Outline Packages - 11-5J101S_2022

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP700AF
Part Number TLP700AF
Manufacturer Toshiba
Pin Count 6
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-5J101S_2022
Released Date Apr 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP700AF Details

Manufacturer Part Number:
TLP700AF
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0.4
Additional Feature:
UL RECOGNIZED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
5000 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
Operating Temperature-Max:
110 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.16 W
Response Time-Max:
2e-7 s
Supply Voltage-Min:
15 V
Supply Voltage-Nom:
30 V
Surface Mount:
YES

TLP700AF Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP700AF is 4.5V to 5.5V.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
The TLP700AF can sink or source up to 64mA of current per channel.
To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents.
The propagation delay time for the TLP700AF is typically around 10ns.

Trust Checks

Community Provided

System Verified

Community Approved

TLP700AF Overview

Use the download button to access the TLP700AF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler
