TLP701(TP,F) footprint, schematic symbol and 3D model by Toshiba

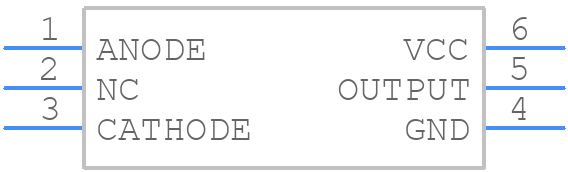

Symbol

PCB Footprints

3D Models

TLP701(TP,F) Details

The recommended operating voltage range for TLP701 is 4.5V to 30V.
To ensure reliability in high-temperature applications, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
The maximum allowable current for the TLP701 is 1A, but it is recommended to limit the current to 0.5A for reliable operation.
Yes, the TLP701 can be used in a switching regulator application, but it is recommended to ensure that the device is operated within its safe operating area (SOA) to prevent overheating and damage.
To protect the TLP701 from ESD, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.

System Verified

Use the download button to access the TLP701(TP,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler

Showing 0 results

Image	Part Number	Model
	TLP701(D4) Toshiba America Electronic Components Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
	TLP701(TP) Toshiba America Electronic Components Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
For a full list of alternate parts for TLP701(TP,F), check out Findchips.com
