TLP701A(F) - Toshiba

Description: Logic Output Optocouplers Photo-IC 5000 Vrms 5mA 500ns 35V 8k Vpk

Download TLP701A(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

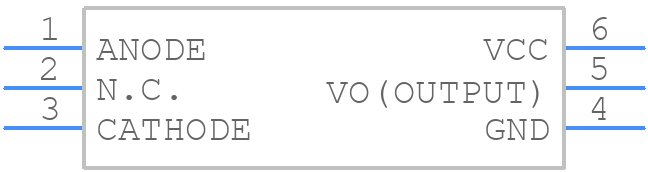

Symbol
TLP701A(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP701A(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 38600-6602
click to zoom

TLP701A(F) Details

  • Manufacturer Part Number:

    TLP701A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SDIP-6

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.04 W

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

TLP701A(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP701A(F) is 4.5V to 30V.
  • To ensure proper biasing, connect the anode of the optocoupler to a voltage source (e.g., VCC) through a current-limiting resistor, and connect the cathode to the output circuit.
  • The maximum allowable current through the TLP701A(F) is 50mA. Exceeding this limit may cause damage to the device.
  • Choose a resistor value that limits the input current to 10mA or less, taking into account the input voltage and the optocoupler's forward voltage drop.
  • The TLP701A(F) is rated for operation up to 85°C. However, derating the device's current and voltage ratings may be necessary for extended high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP701A(F) Overview

Use the download button to access the TLP701A(F) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler
