TLP701F(TP,F) footprint, schematic symbol and 3D model by Toshiba

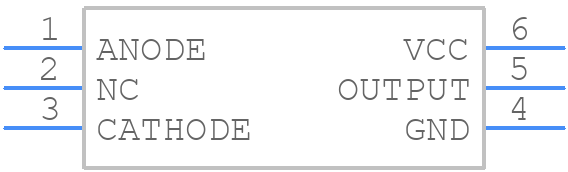

Symbol

PCB Footprints

3D Models

TLP701F(TP,F) Details

The recommended operating voltage range for the TLP701F is 4.5V to 5.5V.
To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically within 10ms) to prevent latch-up or other issues.
The maximum current rating for the TLP701F's output pins is 15mA per pin, with a total current limit of 100mA for all output pins combined.
The TLP701F has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
The TLP701F is rated for operation up to 85°C, but it's recommended to derate the device's performance and consider thermal management strategies for high-temperature applications.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP701F(TP,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler

Showing 0 results

Image	Part Number	Model
	TLP701F Toshiba America Electronic Components Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
	TLP701F(TP) Toshiba America Electronic Components Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
	TLP701F(D4) Toshiba America Electronic Components Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
For a full list of alternate parts for TLP701F(TP,F), check out Findchips.com
