TLP701H(TP,F) footprint, schematic symbol and 3D model by Toshiba

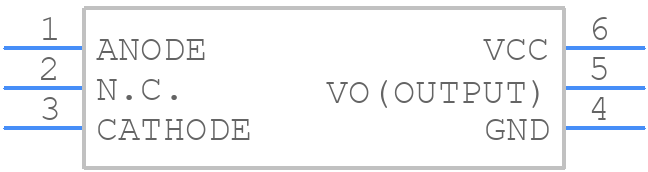

Symbol

PCB Footprints

3D Models

TLP701H(TP,F) Details

The recommended operating voltage range for the TLP701H is 3.3V to 5V, although it can operate from 2.7V to 5.5V.
To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically 10ms or more) to prevent latch-up or other issues.
The maximum current rating for the TLP701H is 50mA per channel, although it's recommended to keep the current below 20mA per channel for reliable operation.
The TLP701H has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
The TLP701H is rated for operation up to 85°C, but it's recommended to derate the device's performance and reliability at higher temperatures. Consult the datasheet for specific derating guidelines.

Expert Contribution

System Verified

Community Approved

Use the download button to access the TLP701H(TP,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP70, or try a keyword search, such as Optocoupler
