TLP705(TP,F) - Toshiba

Description: Logic Output Optocouplers IC Cplr IGBT drive IFLH=5mA

Download TLP705(TP,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

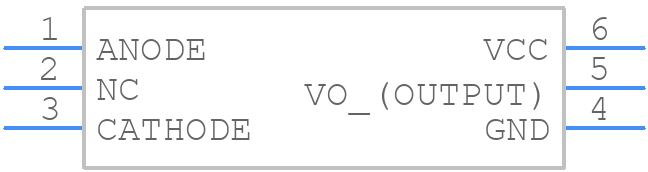

Symbol
TLP705(TP,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP705(TP,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5J1S (H=4.25mm)
click to zoom
3D Models
TLP705(TP,F) - Toshiba - 3D model - Small Outline Packages - 11-5J1S (H=4.25mm)
click to zoom

TLP705(TP,F) Details

  • Manufacturer Part Number:

    TLP705(TP,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SDIP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Max:

    1.7e-7 s

  • Response Time-Nom:

    9.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    YES

TLP705(TP,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TLP705 is 4.5V to 30V.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The maximum allowable current for the TLP705 is 1A, but it is recommended to keep the current below 700mA for reliable operation.
  • Yes, the TLP705 can be used in switching regulator applications, but it is recommended to ensure that the device is properly bypassed and that the switching frequency is within the recommended range.
  • To protect the TLP705 from overvoltage and ESD, it is recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode in parallel with the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP705(TP,F) Overview

Use the download button to access the TLP705(TP,F) schematic symbol, PCB footprint, and 3D model.
