Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink if necessary.
The maximum allowable voltage on the input pins of TLP705AF(F) is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
Yes, TLP705AF(F) can be used in switching power supply applications. However, it is essential to ensure that the device is properly bypassed with capacitors and that the layout is designed to minimize noise and EMI.
To troubleshoot issues with TLP705AF(F), start by checking the power supply voltage, input signals, and output signals using an oscilloscope. Verify that the device is properly biased and that the input signals are within the recommended voltage range. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP705AF(F) Overview

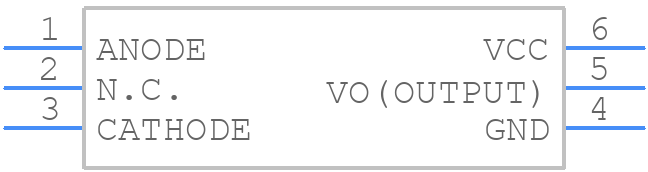

Use the download button to access the TLP705AF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP70,
or try a keyword search, such as Optocoupler
