Toshiba recommends a PCB layout with a small signal path, minimal parasitic inductance, and a solid ground plane to minimize noise and ensure reliable operation. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The TLP715F(F) requires a bias voltage of 5V ± 10% to ensure proper operation. A stable bias voltage can be achieved using a voltage regulator or a voltage reference circuit. Additionally, the input voltage should be within the recommended range of 3.5V to 5.5V.
The maximum allowable power dissipation for the TLP715F(F) is 500mW. Exceeding this limit can cause the device to overheat, leading to reduced performance or even damage. Proper thermal management, such as using a heat sink or ensuring good airflow, is essential to prevent overheating.
The TLP715F(F) is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Toshiba recommends derating the device's power dissipation and ensuring proper thermal management to ensure reliable operation in high-temperature applications.
To troubleshoot issues with the TLP715F(F), start by verifying the power supply voltage, input signal, and output load. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP715F(F) Overview

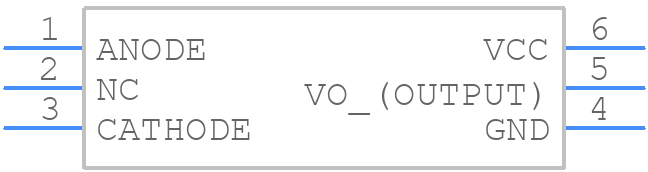

Use the download button to access the TLP715F(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP71,
or try a keyword search, such as Optocoupler
