TLP718(F) - Toshiba

Description: Toshiba TLP718(F) DC Input Optocoupler, Surface Mount, 6-Pin PDIP

Download TLP718(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP718(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

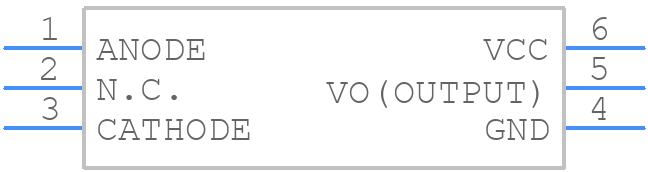

TLP718(F) - Toshiba - PCB symbol

PCB Footprints

TLP718(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5J1S_ 2022

3D Models

TLP718(F) - Toshiba - 3D model - Small Outline Packages - 11-5J1S_ 2022

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP718(F)
Part Number TLP718(F)
Manufacturer Toshiba
Pin Count 6
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-5J1S_ 2022
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP718(F) Details

Manufacturer Part Number:
TLP718(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SDIP-6
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
OPEN COLLECTOR, UL RECOGNIZED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
5000 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Response Time-Nom:
3e-8 ns
Supply Voltage-Min:
4.5 V
Surface Mount:
YES

TLP718(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP718(F) is 4.5V to 5.5V.
To ensure the TLP718(F) is properly powered on, make sure to connect the VCC pin to a stable 5V power supply and the GND pin to a reliable ground connection.
The maximum current rating for the TLP718(F) is 100mA per channel.
Yes, the TLP718(F) is suitable for high-frequency applications up to 100MHz.
To protect the TLP718(F) from ESD damage, use ESD protection devices such as TVS diodes or ESD protection ICs, and follow proper handling and storage procedures.
