TLP719(TP,F) footprint, schematic symbol and 3D model by Toshiba

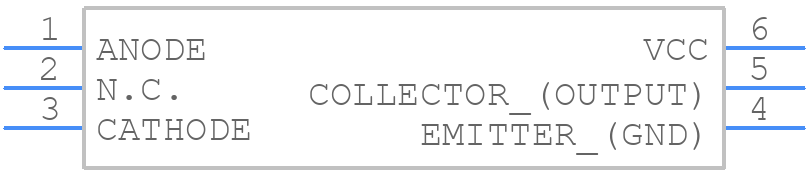

Symbol

PCB Footprints

3D Models

TLP719(TP,F) Details

The recommended operating voltage range for the TLP719 is 4.5V to 5.5V, although it can operate from 3.5V to 5.5V with reduced performance.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, connect the GND pin to a solid ground plane.
The maximum current rating for the TLP719's output pins is 15mA per pin, with a total current limit of 50mA for all output pins combined.
To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents.
For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the signal traces short and direct. Avoid running signal traces near the device's power pins.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP719(TP,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP71, or try a keyword search, such as Optocoupler
