TLP754 - Toshiba

Description: Toshiba TLP754 AC Input Transistor Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP754 Model

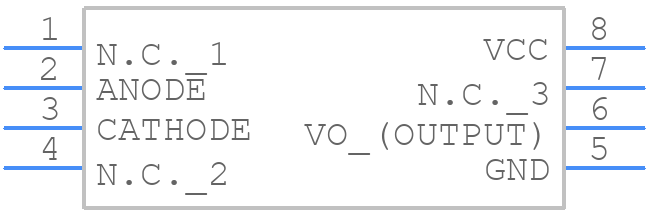

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP754 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S
click to zoom
3D Models
TLP754 - Toshiba  - 3D model - Dual-In-Line Packages - 11-10C402S
click to zoom

TLP754 Details

  • Manufacturer Part Number:

    TLP754

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    OPEN COLLECTOR, UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.015 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.08 W

  • Response Time-Max:

    5.5e-7 s

  • Response Time-Nom:

    3.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    NO

TLP754 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP754 is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 125°C.
  • To ensure proper biasing, the input diode (anode-cathode) should be forward-biased with a voltage between 1.2V and 1.5V, and the output transistor (base-emitter) should be forward-biased with a voltage between 0.6V and 1.2V. Additionally, the input current should be limited to the recommended maximum value to prevent overheating.
  • The TLP754 has a maximum allowable isolation voltage of 5000Vrms (AC) or 7071Vdc (DC) between the input and output. This ensures that the device can withstand high-voltage transients and surges without compromising its electrical isolation.
  • The input resistor value depends on the input voltage, desired current transfer ratio, and the specific application requirements. A general guideline is to choose a resistor value that limits the input current to the recommended maximum value (typically 10mA) while ensuring the desired output current is achieved.
  • The TLP754 is suitable for high-frequency applications up to 100kHz. However, the device's performance may degrade at higher frequencies due to internal capacitances and inductances. It's essential to evaluate the device's performance in your specific application and consider using a faster optocoupler if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP754 Overview

Use the download button to access the TLP754 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP75, or try a keyword search, such as Optocoupler

Parts related to TLP754

Showing 0 results

TLP754 Alternates

Showing results

Image Part Number Model
Part Image TLP754(D4-TP1,F) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation

Part Image TLP754(TP1,F) Toshiba America Electronic Components

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
