TLP759(D4,J,F) - Toshiba

Description: Toshiba TLP759(D4,J,F) DC Input Phototransistor Output Optocoupler, Through Hole, 8-Pin PDIP

Download TLP759(D4,J,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

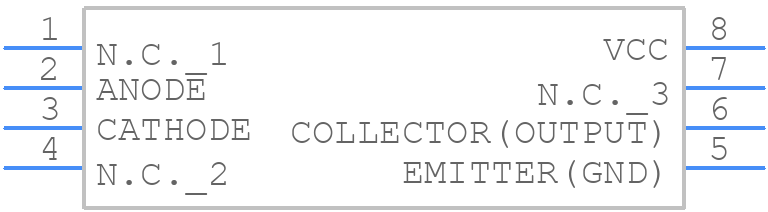

TLP759(D4,J,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP759(D4,J,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP2631
click to zoom
3D Models
TLP759(D4,J,F) - Toshiba - 3D model - Dual-In-Line Packages - TLP2631
click to zoom

TLP759(D4,J,F) Details

  • Manufacturer Part Number:

    TLP759(D4,J,F)

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED, TTL COMPATIBLE, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-7 ns

  • Surface Mount:

    NO

TLP759(D4,J,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP759 is 3.0 to 5.5 volts.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum current rating for the TLP759 is 1.5A, but it is recommended to operate within the recommended operating current range of 0.5A to 1.2A for optimal performance and reliability.
  • The TLP759 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container.
  • The recommended storage temperature range for the TLP759 is -40°C to 125°C, and it is recommended to store the device in a dry, cool place away from direct sunlight and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP759(D4,J,F) Overview

Use the download button to access the TLP759(D4,J,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP75, or try a keyword search, such as Optocoupler
