TLP759(J,F) - Toshiba

Description: High Speed Optocouplers Photocoupler, Photo IC Output

Download TLP759(J,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

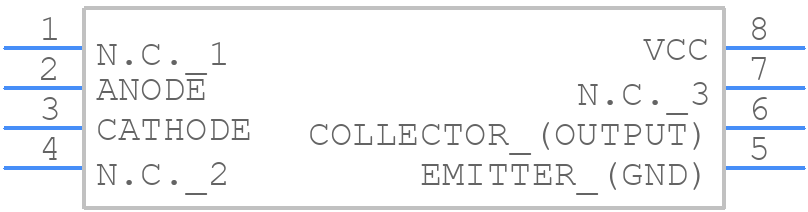

TLP759(J,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP759(J,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP759(J,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP759(J,F) Details

  • Manufacturer Part Number:

    TLP759(J,F)

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED, TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-7 ns

  • Surface Mount:

    NO

TLP759(J,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP759 is 4.5V to 30V.
  • To ensure proper biasing, connect the anode of the internal diode to a voltage source through a current-limiting resistor, and connect the cathode to the load. The recommended bias voltage is 5V to 15V.
  • The maximum allowable current for the TLP759 is 1A. Exceeding this current may cause damage to the device.
  • Use a voltage regulator or a zener diode to protect the TLP759 from overvoltage. For ESD protection, use a TVS diode or a transient voltage suppressor in parallel with the TLP759.
  • The typical response time of the TLP759 is 1μs. However, this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP759(J,F) Overview

Use the download button to access the TLP759(J,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP75, or try a keyword search, such as Optocoupler
