TLP762JF(D4,F) - Toshiba

Description: Toshiba TLP762JF(D4,F) Triac Output Optocoupler, Through Hole, 5-Pin DIP

Download TLP762JF(D4,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

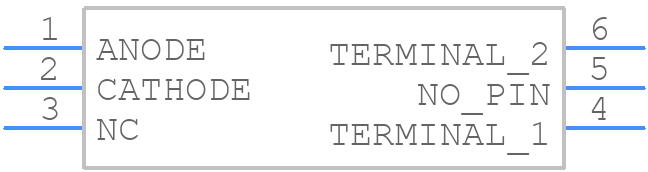

TLP762JF(D4,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP762JF(D4,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7A10
click to zoom
3D Models
TLP762JF(D4,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-7A10
click to zoom

TLP762JF(D4,F) Details

  • Manufacturer Part Number:

    TLP762JF(D4,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    4000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Surge Current:

    1.2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

TLP762JF(D4,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP762JF is 3.3V to 5V, although it can tolerate up to 6V for short periods.
  • To ensure reliable communication, ensure that the input signal rise and fall times are within the recommended range of 10ns to 100ns, and that the input signal amplitude is within the recommended range of 0.4V to 5V.
  • The TLP762JF supports data transfer rates up to 100 Mbps.
  • To handle thermal considerations, ensure that the device is mounted on a suitable heat sink, and that the ambient temperature is within the recommended range of -40°C to 85°C.
  • To minimize electromagnetic interference (EMI) and ensure reliable operation, follow the recommended layout and routing guidelines in the datasheet, including keeping signal traces short and away from noise sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP762JF(D4,F) Overview

Use the download button to access the TLP762JF(D4,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP76, or try a keyword search, such as Optocoupler
