TLP785(GB-TP6,F - Toshiba

Description: Transistor Output Optocouplers Photocoupler 80V 60mA 5000 Vrms

Download TLP785(GB-TP6,F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

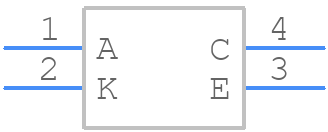

TLP785(GB-TP6,F - Toshiba - PCB symbol
click to zoom
PCB Footprints

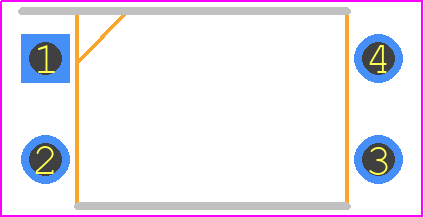

TLP785(GB-TP6,F - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-5L1
click to zoom
3D Models
TLP785(GB-TP6,F - Toshiba - 3D model - Dual-In-Line Packages - 11-5L1
click to zoom

TLP785(GB-TP6,F Details

  • Manufacturer Part Number:

    TLP785(GB-TP6,F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-4

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, PLASTIC, 13 INCH

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

TLP785(GB-TP6,F Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP785 is 4.5V to 5.5V, as specified in the datasheet.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature within the recommended range.
  • The maximum current rating for the TLP785 is 1A, as specified in the datasheet. However, it is recommended to consider the power dissipation and thermal characteristics of the device when designing the application.
  • Yes, the TLP785 can be used in switching applications, but it is recommended to consider the switching frequency, voltage, and current ratings to ensure reliable operation.
  • To protect the TLP785 from ESD, it is recommended to follow proper handling and storage procedures, and to use ESD protection devices such as diodes or resistors in the application circuit.
