Toshiba recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC pin. The input and output pins should be routed away from each other to minimize noise coupling. A sample PCB layout is available in the application note.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat dissipation on the PCB.
The maximum cable length supported by the TLP7920 depends on the specific application and the type of cable used. As a general guideline, Toshiba recommends keeping the cable length below 10 meters to ensure reliable operation. However, longer cable lengths may be possible with proper termination and signal conditioning.
The TLP7920 is designed to operate with a 5V supply voltage, but it can also operate with a supply voltage range of 4.5V to 5.5V. However, the output voltage and current ratings may vary depending on the supply voltage. Consult the datasheet for specific details.
To troubleshoot issues with the TLP7920, first check the input voltage and current, and ensure that they are within the recommended operating range. Next, verify that the output voltage is within the specified range and that the output current is not exceeding the maximum rating. If the issue persists, consult the application note for troubleshooting guidelines and contact Toshiba support if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP7920 Overview

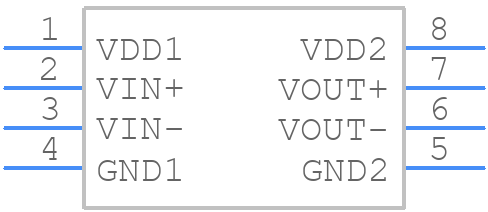

Use the download button to access the TLP7920 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP79,
or try a keyword search, such as Isolation Amplifiers
