TLPN137(F) - Toshiba

Description: Toshiba TLPN137(F) AC Input IC Output Optocoupler, Through Hole, 8-Pin DIP

Download TLPN137(F) Model

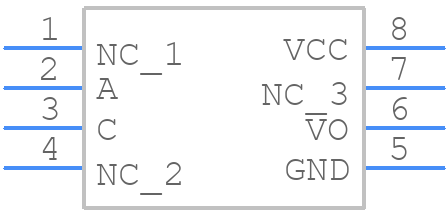

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLPN137(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP250H
click to zoom
3D Models
TLPN137(F) - Toshiba  - 3D model - Dual-In-Line Packages - TLP250H
click to zoom

TLPN137(F) Details

  • Manufacturer Part Number:

    TLPN137(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    1.2e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    NO

TLPN137(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLPN137(F) involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range, use a heat sink if necessary, and follow proper thermal design guidelines.
  • The TLPN137(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage.
  • Yes, the TLPN137(F) can be used in switching power supply applications, but ensure that the device is operated within its recommended frequency range and that proper filtering and shielding are used to minimize electromagnetic interference.
  • To troubleshoot issues with the TLPN137(F), start by checking the device's input and output signals, verifying proper power supply voltage, and checking for any signs of overheating or physical damage.
