TLR306 - Toshiba

Description: TOSHIBA LED DISPALY 15mm Character Heigth Numerical and Polarity Display. 10pin (DIP)306 Series: TOSHIBA 4-18A1A

Download TLR306 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLR306 model

Email notifications will be applied after download.

Send part feedback

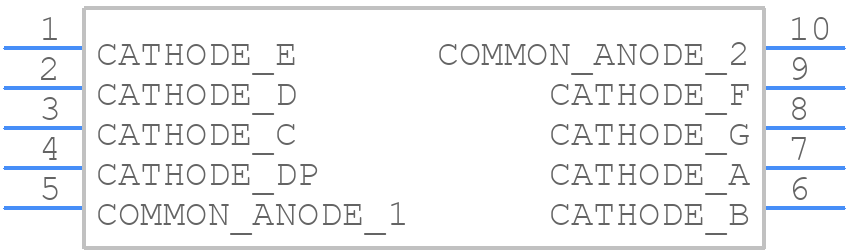

Symbol

TLR306 - Toshiba - PCB symbol

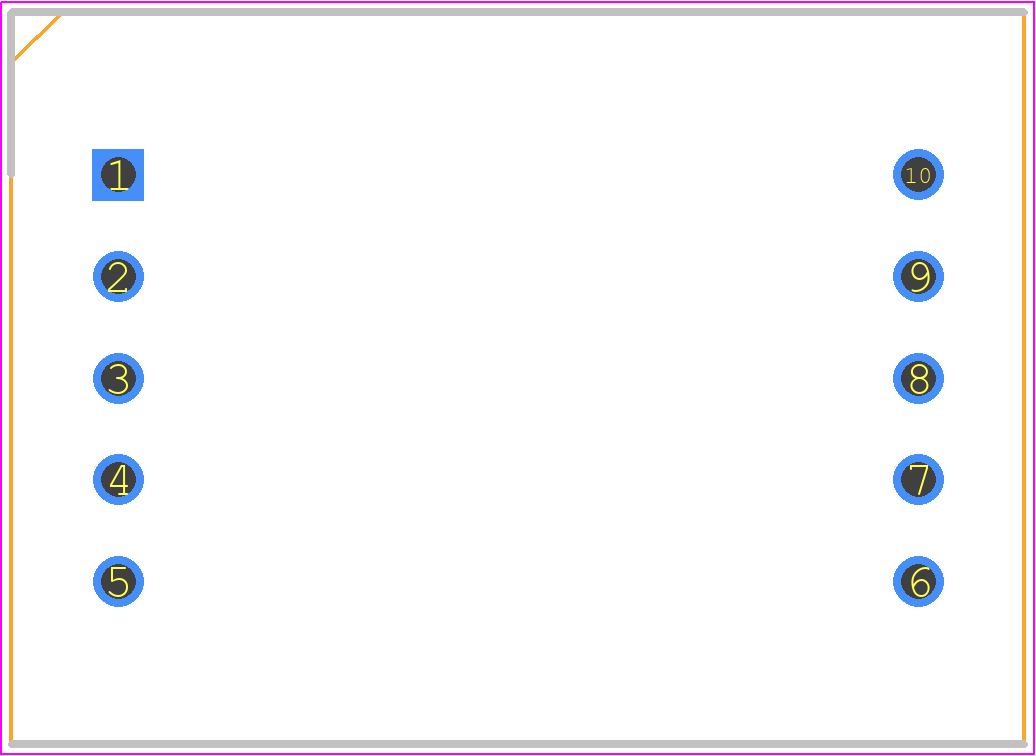

PCB Footprints

TLR306 - Toshiba PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4-18A1A

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLR306
Part Number TLR306
Manufacturer Toshiba
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 4-18A1A
Released Date Jun 23, 2023
Last Modified Date Jun 23, 2023 12:21 PM UTC
Pinout / Pin List Click Here (Member Only)

TLR306 Details

Manufacturer Part Number:
TLR306
Part Life Cycle Code:
Obsolete
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Color:
RED
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
15 mm
Forward Current-Max:
0.035 A
Number of Functions:
1
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-30 °C
Optoelectronic Device Type:
SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Trust Checks

Community Provided

System Verified

Community Approved

TLR306 Overview

Use the download button to access the TLR306 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLR30, or try a keyword search, such as LED Displays
