A good PCB layout for the TLS205B0EJV33XUMA1 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation in high-temperature environments, ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heatsink.
The recommended soldering conditions for the TLS205B0EJV33XUMA1 are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also recommended to use a solder with a melting point of 217°C or higher.
To handle ESD protection for the TLS205B0EJV33XUMA1, ensure that all equipment and personnel are grounded, use ESD-protective packaging and handling materials, and consider using ESD protection devices such as TVS diodes or ESD arrays in the circuit design.
The TLS205B0EJV33XUMA1's power-on reset (POR) circuitry ensures that the device is properly reset during power-up. This means that the device will not start operating until the power supply has reached a stable level, ensuring reliable operation and preventing potential latch-up or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS205B0EJV33XUMA1 Overview

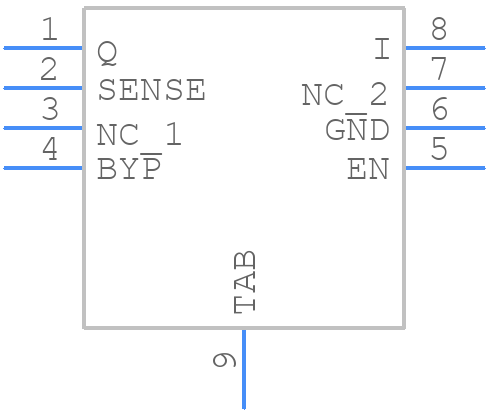

Use the download button to access the TLS205B0EJV33XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS20,
or try a keyword search, such as Linear Regulator ICs
