A good PCB layout for the TLS205B0LDVXUMA1 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable communication over the LIN bus, ensure that the bus is properly terminated, use a common mode filter to reduce electromagnetic interference (EMI), and implement a robust error handling mechanism to detect and recover from errors.
To ensure EMI and EMC compliance, use a shielded cable for the LIN bus, implement a common mode filter, and ensure that the PCB layout is designed to minimize radiation. Additionally, follow the guidelines for EMI and EMC testing and certification.
To troubleshoot issues with the TLS205B0LDVXUMA1, use a logic analyzer to monitor the LIN bus, check the device's power supply and ground connections, and verify that the device is properly configured and initialized. Consult the datasheet and application notes for troubleshooting guidelines.
The TLS205B0LDVXUMA1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and implement thermal monitoring and shutdown mechanisms to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS205B0LDVXUMA1 Overview

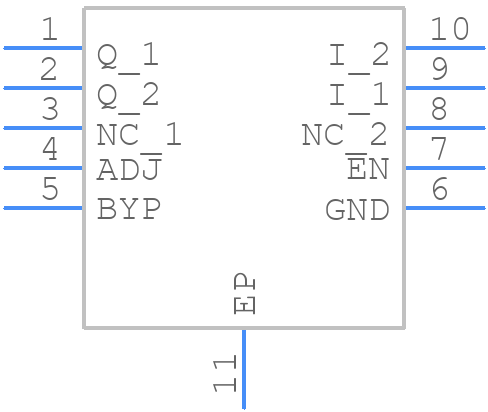

Use the download button to access the TLS205B0LDVXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS20,
or try a keyword search, such as Linear Regulator ICs
