TLS208D1EJVXUMA1 - Infineon

Description: INFINEON - TLS208D1EJVXUMA1 - LDO, 0.8V-5.25V, 0.8A, -40 TO 150DEG C

Download TLS208D1EJVXUMA1 Model

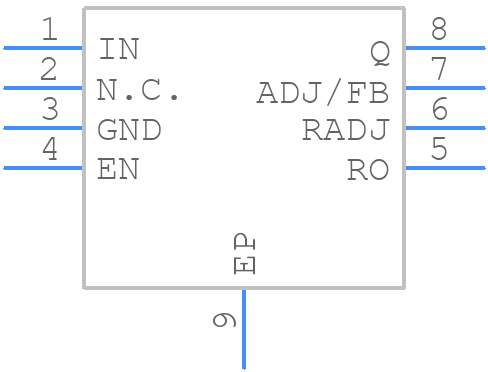

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLS208D1EJVXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8
click to zoom
3D Models
TLS208D1EJVXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8
click to zoom

TLS208D1EJVXUMA1 Details

  • Manufacturer Part Number:

    TLS208D1EJVXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    1.59 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.2

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.8 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TLS208D1EJVXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable for the LIN bus, keep the PCB layout compact, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI).
  • The maximum cable length supported by the TLS208D1EJVXUMA1 is 40 meters, assuming a cable with a capacitance of 30 pF/m and a resistance of 100 Ω/m.
  • Use a logic analyzer or an oscilloscope to monitor the LIN bus signals, check the bus voltage and current, and verify the slave node address and baud rate configuration.
  • The recommended power-up sequence is to apply VCC first, followed by VBAT, and then the LIN bus signal. This ensures proper device initialization and prevents latch-up.
