A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
The recommended decoupling capacitors for the TLS4125D0EPV50XUMA1 are 100nF to 1uF ceramic capacitors, placed as close to the device as possible. This helps to filter out noise and ensure stable operation.
To troubleshoot issues with the device's output voltage, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, and that the output load is within the device's current rating. Also, check for any signs of overheating or thermal shutdown.
Operating the device beyond its specified current rating can lead to reduced reliability, increased thermal stress, and potentially even device failure. It's essential to ensure that the device is operated within its specified current rating to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS4125D0EPV50XUMA1 Overview

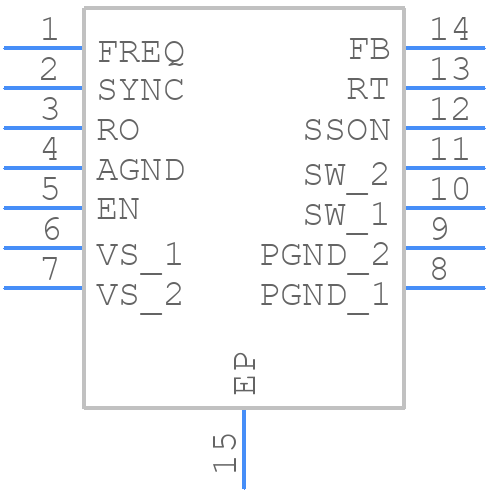

Use the download button to access the TLS4125D0EPV50XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS41,
or try a keyword search, such as Switching Regulator or Controllers
