Infineon provides a recommended PCB layout in the application note AN2014-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The TLS805D1LDV50XUMA1 has an internal overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. A dedicated overcurrent protection IC or a fuse can be used in conjunction with the internal protection feature.
The maximum allowed voltage drop across the TLS805D1LDV50XUMA1 is typically around 0.5V to 1V, depending on the specific application and operating conditions. It's essential to ensure that the voltage drop is within the recommended range to maintain device reliability and performance.
During startup, the thermal shutdown feature may be triggered due to high inrush currents. To handle this, it's recommended to implement a soft-start circuit or a delayed enable signal to gradually increase the input voltage and reduce the inrush current.
The recommended input capacitor type is an X7R or X5R ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close as possible to the device's input pins to ensure effective noise filtering and decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS805D1LDV50XUMA1 Overview

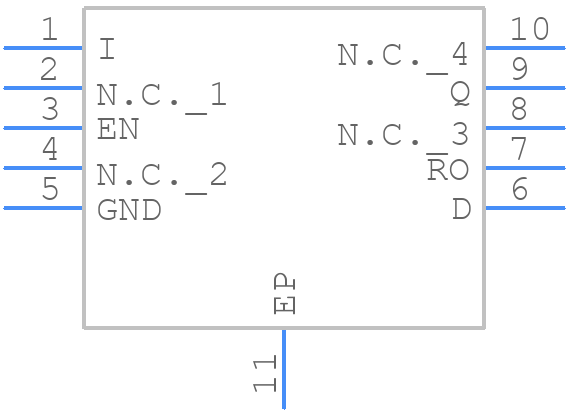

Use the download button to access the TLS805D1LDV50XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS80,
or try a keyword search, such as Linear Regulator ICs
