TLS810A1LDV33XUMA1 - Infineon

Description: Linear Voltage Regulators

Download TLS810A1LDV33XUMA1 Model

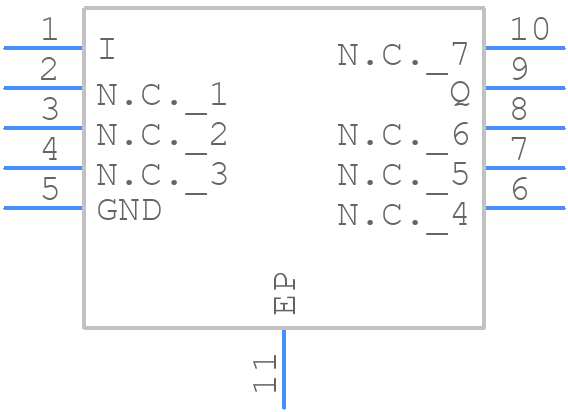

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLS810A1LDV33XUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - TLS810A1LDV33XUMA1
click to zoom
3D Models
TLS810A1LDV33XUMA1 - Infineon  - 3D model - Small Outline No-lead - TLS810A1LDV33XUMA1
click to zoom

TLS810A1LDV33XUMA1 Details

  • Manufacturer Part Number:

    TLS810A1LDV33XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.65 V

  • Dropout Voltage1-Nom:

    0.25 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.55 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.02%

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.23 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.13,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2.12%

  • Width:

    3.3 mm

TLS810A1LDV33XUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable and connector, and keep the device away from high-frequency sources. Also, follow the recommended PCB layout and grounding scheme to minimize electromagnetic radiation.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation and prevent damage to the device.
  • Check the input voltage, ensure the enable pin is properly configured, and verify the output voltage is within the specified range. Also, check for any short circuits or overheating issues.
  • The device is rated for operation up to 150°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation and prevent overheating.
