TLS810A1LDV50XUMA1 - Infineon

Description: Linear Voltage Regulators LINEAR VOLTAGE REGULATOR

Download TLS810A1LDV50XUMA1 Model

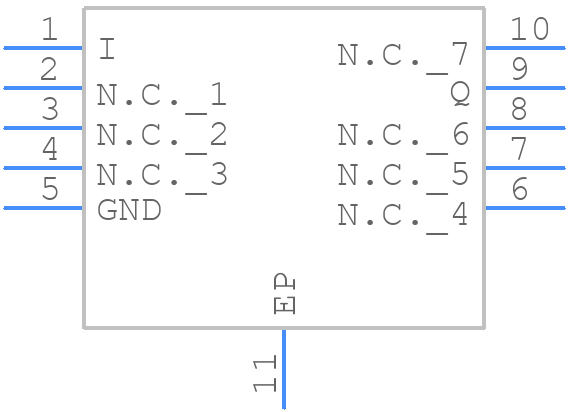

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLS810A1LDV50XUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-TSON-10*
click to zoom
3D Models
TLS810A1LDV50XUMA1 - Infineon  - 3D model - Small Outline No-lead - PG-TSON-10*
click to zoom

TLS810A1LDV50XUMA1 Details

  • Manufacturer Part Number:

    TLS810A1LDV50XUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.2

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.55 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    5.55 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.02%

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.13,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.3 mm

TLS810A1LDV50XUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable and connector, and keep the device away from high-frequency sources. Also, follow the recommended PCB layout and grounding scheme to minimize electromagnetic interference.
  • The maximum allowed voltage on the input pins is 50V, but it's recommended to keep it below 40V to ensure reliable operation and prevent damage to the device.
  • Check the input voltage, ensure proper connections, and verify that the enable pin is properly configured. Also, check for any short circuits or overheating issues that may prevent the device from turning on.
  • The device is rated for operation up to 150°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for thermal derating curves and ensure proper heat sinking and cooling.
