TLS810D1LDV33XUMA1 - Infineon

Description: LDO Voltage Regulators OPTIREG LINEAR

Download TLS810D1LDV33XUMA1 Model
Schematic

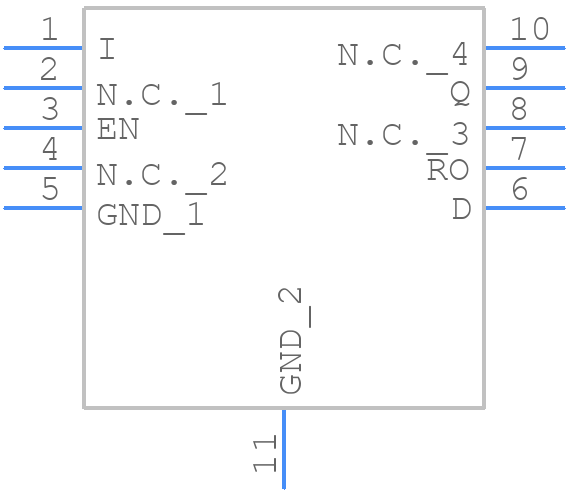

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLS810D1LDV33XUMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-TSON-10
click to zoom
3D Models
TLS810D1LDV33XUMA1 - Infineon  - 3D model - Small Outline No-lead - PG-TSON-10
click to zoom

TLS810D1LDV33XUMA1 Details

  • Manufacturer Part Number:

    TLS810D1LDV33XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSON-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.65 V

  • Dropout Voltage1-Nom:

    0.25 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.95 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.02%

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.23 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.13,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2.12%

  • Width:

    3.3 mm

TLS810D1LDV33XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. Infineon recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN2013-03 for more details.
  • The maximum allowed voltage drop across the TLS810D1LDV33XUMA1 is 0.5V. Exceeding this voltage drop may affect the device's performance and reliability.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from heat sources. Refer to the application note AN2013-03 for more details on thermal design considerations.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a cooling rate of 3-5°C/s. Refer to the application note AN2013-03 for more details on soldering guidelines.
