Infineon provides a recommended PCB layout in their application note AN2014-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The TLS850F0TAV33ATMA1 has an internal overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. Infineon provides an example circuit in their application note AN2015-03.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize ripple voltage.
Infineon provides EMC guidelines in their application note AN2016-01, which includes recommendations for PCB layout, component selection, and shielding to ensure compliance with EMC standards.
The maximum operating temperature range for the TLS850F0TAV33ATMA1 is -40°C to 150°C, but the device can be operated up to 175°C for short periods of time. However, the device's reliability and lifespan may be affected at higher temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS850F0TAV33ATMA1 Overview

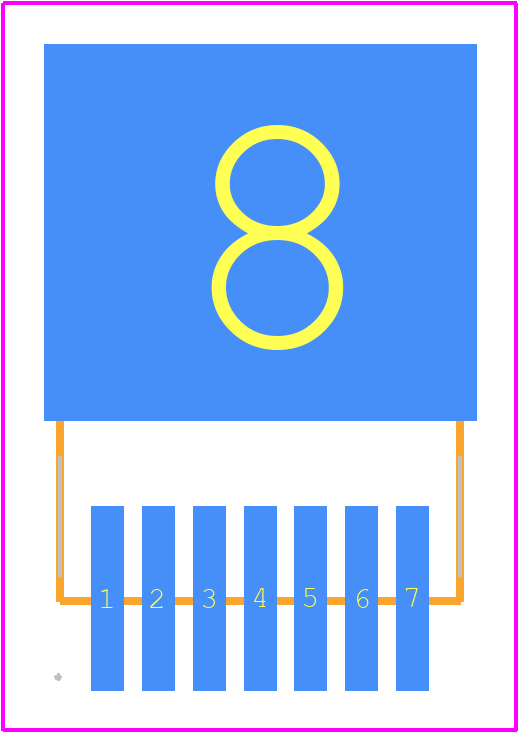

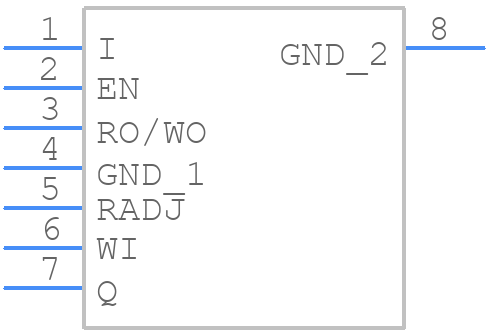

Use the download button to access the TLS850F0TAV33ATMA1 schematic symbol, PCB footprint, and 3D model.
