A good PCB layout for the TLS850F2TAV50ATMA1 should include a solid ground plane, wide power traces, and thermal vias to dissipate heat efficiently. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derating guidelines.
The TLS850F2TAV50ATMA1 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded.
Yes, the TLS850F2TAV50ATMA1 is designed to withstand vibrations. However, ensure that the PCB is properly secured and consider using a vibration-dampening material or potting compound to minimize the effects of vibration.
To troubleshoot issues with the TLS850F2TAV50ATMA1, start by checking the power supply voltage, ensuring proper connections, and verifying the input signals. Use an oscilloscope to analyze the output signals and check for any signs of overheating or electrical overstress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLS850F2TAV50ATMA1 Overview

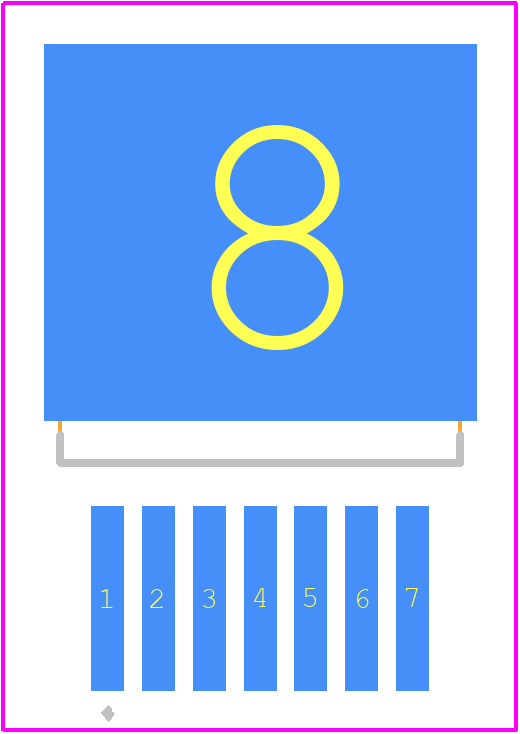

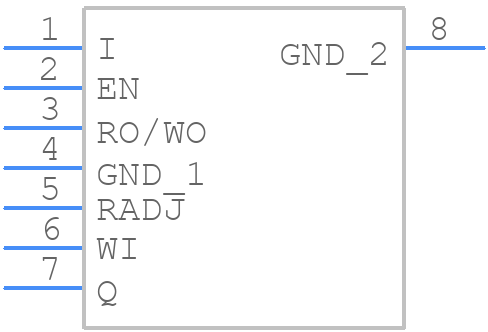

Use the download button to access the TLS850F2TAV50ATMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLS85,
or try a keyword search, such as Linear Regulator ICs
