The maximum power dissipation of the TLV2241ID is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. It's essential to ensure that the device does not exceed these limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, make sure to follow proper PCB layout practices and minimize parasitic capacitances.
The recommended input common-mode voltage range for the TLV2241ID is from VCC- to VCC+ - 1.5V. Operating outside of this range may result in reduced performance, increased distortion, or even device damage. It's essential to ensure that the input common-mode voltage stays within this range to maintain optimal performance.
While the TLV2241ID can be used as a comparator, it's not the most suitable device for this application. The TLV2241ID is an op-amp designed for linear applications, and its output stage is not optimized for high-speed switching. Texas Instruments offers dedicated comparator devices, such as the TLV7031, which are better suited for comparator applications.
The TLV2241ID has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an anti-static wrist strap, mat, or workstation, and ensure that the device is handled in a static-safe environment. Additionally, follow the recommended assembly and soldering procedures to prevent damage during the manufacturing process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2241ID Overview

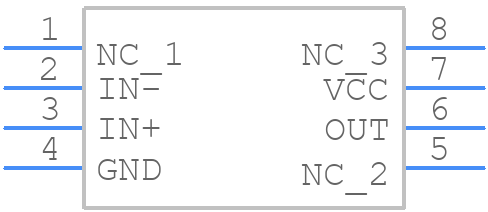

Use the download button to access the TLV2241ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
