Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for op-amp layout, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
The TLV2242IDGKRG4 has a thermal pad that must be connected to a thermal relief pattern on the PCB to ensure proper heat dissipation. The thermal pad should be connected to a large copper area on the PCB, and thermal vias can be used to dissipate heat to the other side of the board. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal dissipation.
The recommended input impedance for the TLV2242IDGKRG4 is typically in the range of 1 kΩ to 10 kΩ, while the recommended output impedance is typically in the range of 100 Ω to 1 kΩ. However, the optimal impedance values may vary depending on the specific application and the desired performance characteristics.
The TLV2242IDGKRG4 requires a proper biasing and compensation network to ensure stability. The datasheet provides a recommended compensation network, but the values may need to be adjusted depending on the specific application and the desired performance characteristics. Additionally, the device should be biased using a low-impedance power supply, and the input and output signals should be properly terminated to prevent oscillations.
Common failure modes of the TLV2242IDGKRG4 include overheating, overvoltage, and electrostatic discharge (ESD). To prevent these failure modes, it's essential to follow proper handling and storage procedures, ensure proper thermal dissipation, and use voltage regulators and ESD protection devices to prevent overvoltage and ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2242IDGKRG4 Overview

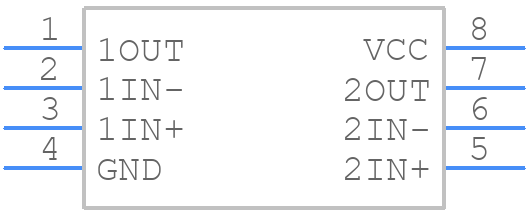

Use the download button to access the TLV2242IDGKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
