TLV2252AQDRQ1 - Texas Instruments

Description: Automotive, advanced LinCMOS™ rail-to-rail very low-power dual precision operational amplif

Download TLV2252AQDRQ1 Model

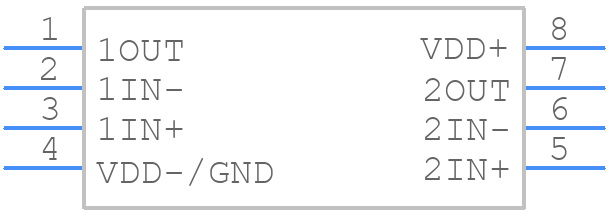

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2252AQDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLV2252AQDRQ1 - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TLV2252AQDRQ1 Details

  • Manufacturer Part Number:

    TLV2252AQDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00006 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    83 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    850 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.05 V/us

  • Slew Rate-Nom:

    0.12 V/us

  • Supply Current-Max:

    0.125 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLV2252AQDRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV2252AQDRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
  • To ensure the TLV2252AQDRQ1 operates within its specified temperature range, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and avoiding high ambient temperatures. It's also crucial to follow the recommended thermal design and layout guidelines.
  • Exceeding the maximum input voltage rating of the TLV2252AQDRQ1 can cause permanent damage to the device, leading to reduced performance, increased power consumption, or even complete failure. It's essential to ensure the input voltage remains within the specified range to maintain the device's reliability and performance.
  • To troubleshoot issues with the TLV2252AQDRQ1, start by verifying the PCB layout and ensuring it meets the recommended guidelines. Check for proper decoupling, correct component values, and adequate power supply filtering. Use an oscilloscope to analyze the output waveform and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • When using the TLV2252AQDRQ1 in a high-reliability or safety-critical application, it's essential to follow strict design and testing guidelines to ensure the device operates within its specified parameters. This may involve additional testing, validation, and certification procedures to guarantee the device's performance and reliability in critical environments.
