Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for op-amp layout, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the power pins.
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain will result in a lower bandwidth, and vice versa. Texas Instruments provides a gain-bandwidth product graph in the datasheet to help with this selection.
The maximum power dissipation of the TLV2262AQPWRQ1 is dependent on the package type and ambient temperature. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and package thermal resistance.
Yes, the TLV2262AQPWRQ1 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and that the output is properly terminated to prevent oscillations.
The TLV2262AQPWRQ1 has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV2262AQPWRQ1 Overview

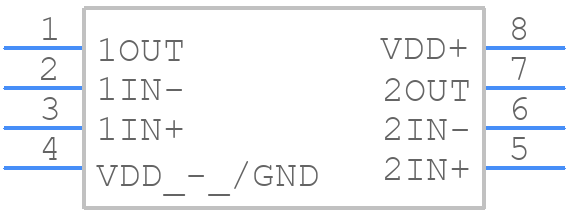

Use the download button to access the TLV2262AQPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV22,
or try a keyword search, such as Operational Amplifiers
