Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for op-amp layout, such as keeping the input and output traces short and away from noise sources, and using a solid ground plane.
The choice of resistors for the feedback network depends on the desired gain and bandwidth of the amplifier. A good starting point is to use resistors with a 1% or 0.1% tolerance, and to choose values that minimize noise and maximize bandwidth. TI's Op Amps for Everyone guide provides a detailed discussion on feedback network design.
The maximum power dissipation of TLV2264AQPWRQ1 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated for higher temperatures. It's essential to perform thermal calculations to ensure the device operates within its safe operating area.
Yes, TLV2264AQPWRQ1 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and that the output impedance is low enough to drive the load. Additionally, the device's bandwidth and slew rate should be sufficient for the application.
ESD protection is critical for TLV2264AQPWRQ1. TI recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Additionally, proper PCB design and handling practices, such as using an ESD wrist strap and anti-static bags, can help prevent ESD damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLV2264AQPWRQ1 Overview

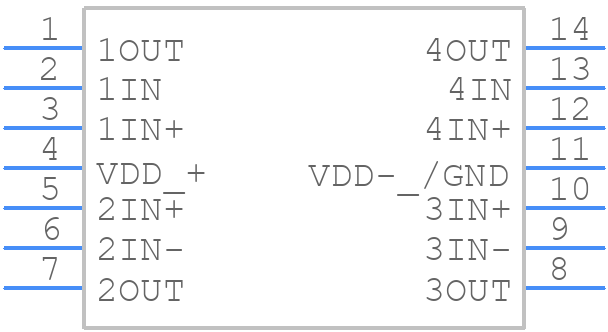

Use the download button to access the TLV2264AQPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
