Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.002 µA
Bias Current-Max (IIB) @25C:
0.0002 µA
Common-mode Reject Ratio-Min:
65 dB
Common-mode Reject Ratio-Nom:
91 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
9000 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.4 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
0.43 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
0.56 mA
Supply Voltage Limit-Max:
8 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
525
Voltage Gain-Min:
25000
Wideband:
NO
Width:
3 mm
TLV2332IPWR Frequently Asked Questions (FAQs)
Texas Instruments recommends a compact layout with the TLV2332IPWR placed close to the power supply pins, and the input and output capacitors placed as close as possible to the device. A 4-layer PCB with a solid ground plane is also recommended to minimize noise and EMI.
To ensure stability, it's essential to follow the recommended layout and placement guidelines, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VCC and GND pins can help to reduce noise and prevent oscillations.
The TLV2332IPWR can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure that it is operated within the recommended specifications to avoid overheating and damage.
The TLV2332IPWR is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and ensure that it is operated within the recommended specifications to avoid overheating and damage. Additionally, the device's output current capability may be reduced at high temperatures.
To troubleshoot issues with the TLV2332IPWR, start by checking the input voltage, output voltage, and output current to ensure that they are within the recommended specifications. Check the device's thermal performance and ensure that it is operated within the recommended specifications. Also, check the layout and placement of the device and surrounding components to ensure that they meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2332IPWR Overview

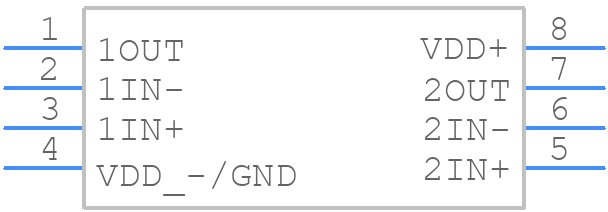

Use the download button to access the TLV2332IPWR schematic symbol, PCB footprint, and 3D model.
