The maximum power dissipation of TLV2370IDR is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
To ensure stability in the TLV2370IDR op-amp, it is recommended to use a capacitor with a value of 10nF to 100nF between the BYPASS pin and the negative supply pin. Additionally, the layout should be designed to minimize parasitic inductance and capacitance.
The recommended layout for the TLV2370IDR involves placing the op-amp close to the analog signal sources, using a ground plane to minimize noise, and keeping the input and output traces short and away from each other to reduce crosstalk.
While the TLV2370IDR is an op-amp, it can be used as a comparator in certain applications. However, it is not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth.
To handle ESD protection for the TLV2370IDR, it is recommended to use a TVS (Transient Voltage Suppressor) diode or a Zener diode with a voltage rating higher than the supply voltage, and to follow proper PCB layout and handling practices to minimize ESD exposure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2370IDR Overview

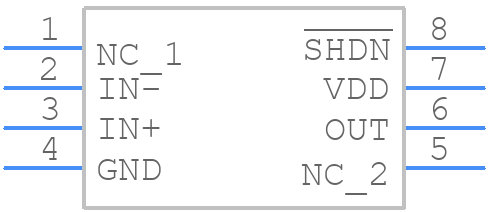

Use the download button to access the TLV2370IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
