A good PCB layout for the TLV2371QDRG4Q1 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and crosstalk.
To ensure the TLV2371QDRG4Q1 operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be placed in a well-ventilated area to prevent overheating.
Exceeding the maximum input voltage on the TLV2371QDRG4Q1 can cause permanent damage to the device, including latch-up or even destruction. It's crucial to ensure the input voltage remains within the specified range to prevent damage and ensure reliable operation.
To troubleshoot issues with the TLV2371QDRG4Q1, start by verifying the PCB layout and ensuring that the device is properly decoupled. Check for any signs of oscillation or instability, and verify that the input and output voltages are within the specified ranges. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
When using the TLV2371QDRG4Q1 in a high-reliability or safety-critical application, it's essential to follow Texas Instruments' guidelines for reliability and fault tolerance. This may involve implementing redundant systems, using error detection and correction mechanisms, and ensuring compliance with relevant industry standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2371QDRG4Q1 Overview

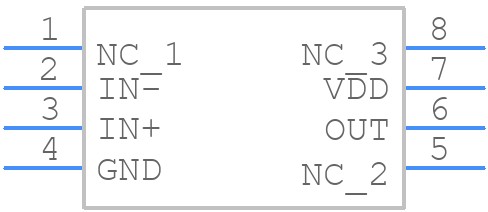

Use the download button to access the TLV2371QDRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
