The maximum power dissipation of TLV2373IDR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
To minimize noise and ensure stability, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, the input and output traces should be kept short and away from noise sources.
The recommended input voltage range for TLV2373IDR is 1.8V to 5.5V, although the device can operate with input voltages as low as 1.5V. However, the output voltage swing and linearity may be affected at lower input voltages.
The output capacitor should be chosen based on the desired output voltage ripple and stability. A minimum output capacitance of 1uF is recommended, but larger values may be required for low-ESR capacitors or high-current applications. The output capacitor should also be placed close to the device to minimize parasitic inductance.
Yes, TLV2373IDR is rated for operation up to 125°C, making it suitable for high-temperature environments. However, the device's performance and reliability may be affected at high temperatures, and the maximum power dissipation should be derated accordingly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2373IDR Overview

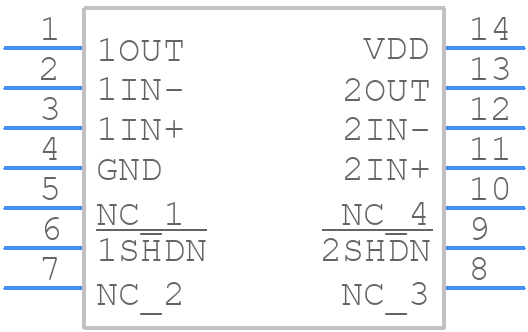

Use the download button to access the TLV2373IDR schematic symbol, PCB footprint, and 3D model.
