Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.00015 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
70 dB
Common-mode Reject Ratio-Nom:
83 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.00006 µA
Input Offset Voltage-Max:
950 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.4 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Min:
0.1 V/us
Slew Rate-Nom:
0.25 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
0.25 mA
Supply Voltage Limit-Max:
12 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
500
Voltage Gain-Min:
1500
Wideband:
NO
Width:
3 mm
TLV2432AIPWR Frequently Asked Questions (FAQs)
A good PCB layout for TLV2432AIPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
To ensure the stability of the TLV2432AIPWR output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A 10uF ceramic capacitor with an ESR of 10mΩ or less is recommended. Additionally, the output voltage can be stabilized by adding a 1uF ceramic capacitor in parallel with the output capacitor.
The maximum input voltage that can be applied to TLV2432AIPWR is 15V. Exceeding this voltage can cause permanent damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the specified range.
To protect TLV2432AIPWR from overcurrent and overheating, it's recommended to add an overcurrent protection circuit, such as a fuse or a current-sensing resistor, in series with the input voltage. Additionally, a thermal shutdown circuit can be implemented to turn off the device in case of overheating.
TLV2432AIPWR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2432AIPWR Overview

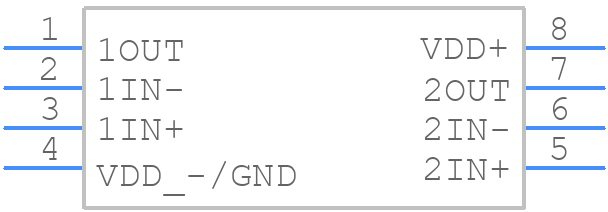

Use the download button to access the TLV2432AIPWR schematic symbol, PCB footprint, and 3D model.
