Texas Instruments provides a recommended PCB layout in the TLV2442AQPWR datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
To ensure the TLV2442AQPWR operates within its recommended operating conditions, verify that the supply voltage, input common-mode voltage, and output load conditions are within the specified ranges. Also, ensure that the device is properly decoupled and that the thermal dissipation is adequate.
The TLV2442AQPWR can drive capacitive loads up to 100 pF, but it's recommended to limit the capacitive load to 10 pF or less to ensure stability and optimal performance.
The TLV2442AQPWR is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper thermal dissipation to prevent overheating. Consult the datasheet for thermal resistance and power dissipation guidelines.
To troubleshoot oscillations or instability issues with the TLV2442AQPWR, check the PCB layout for any issues, ensure proper decoupling, and verify that the input and output signals are within the recommended ranges. Also, check for any noise or interference on the power supply or input signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2442AQPWR Overview

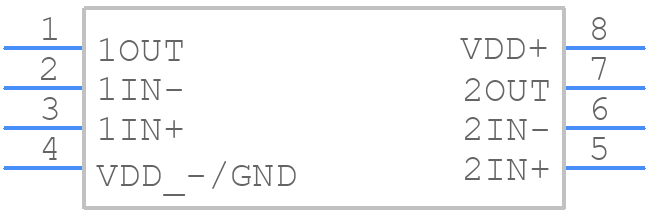

Use the download button to access the TLV2442AQPWR schematic symbol, PCB footprint, and 3D model.
