Texas Instruments recommends a star-ground configuration, with the TLV2451CP's GND pin connected to a solid ground plane. Keep analog and digital traces separate, and use a 0.1uF decoupling capacitor between VCC and GND. Additionally, place the TLV2451CP close to the analog signal sources to minimize noise pickup.
The TLV2451CP has a rail-to-rail output stage, but the output voltage swing may not reach the full supply voltage. To achieve a specific voltage level, consider using an external amplifier or a voltage translator. Alternatively, adjust the reference voltage or use a resistive divider network to level-shift the output voltage.
The TLV2451CP can drive capacitive loads up to 1nF without oscillation. However, excessive capacitive loading can cause instability. To ensure stability, use a series resistor (Rs) to isolate the capacitive load, and calculate Rs using the formula: Rs = 10 / (Cload * f Unity-Gain).
To minimize power consumption, operate the TLV2451CP at the lowest possible supply voltage (1.8V) and reduce the operating frequency. Additionally, consider using the shutdown mode (SHDN pin) to disable the amplifier when not in use. This can reduce the quiescent current from 1.2mA to 0.01uA.
The TLV2451CP is susceptible to electromagnetic interference (EMI). To mitigate EMI effects, use a shielded enclosure, keep the TLV2451CP away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, consider using a low-pass filter or a shielding material to reduce radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2451CP Overview

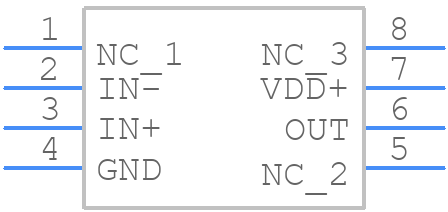

Use the download button to access the TLV2451CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
