Texas Instruments recommends following a star-grounding layout, keeping the input and output traces short and away from noise sources, and using a solid ground plane to minimize noise and electromagnetic interference (EMI). Additionally, it's essential to follow proper decoupling and bypassing techniques to ensure stable operation.
The output capacitor value depends on the specific application and load requirements. As a general rule, a 10uF to 22uF ceramic capacitor is recommended for most applications. However, for high-frequency applications or those requiring low output impedance, a smaller capacitor value (e.g., 1uF to 4.7uF) may be necessary. Consult the datasheet and application notes for more guidance.
The maximum power dissipation for the TLV2451ID is 670mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended maximum to prevent overheating and device damage.
Yes, the TLV2451ID can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to prevent loading the source, and the output impedance is low enough to drive the load. Additionally, consider the bandwidth and slew rate requirements of your application, as the TLV2451ID may not be suitable for very high-frequency or high-slew-rate applications.
The TLV2451ID has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an anti-static wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or exposed die. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2451ID Overview

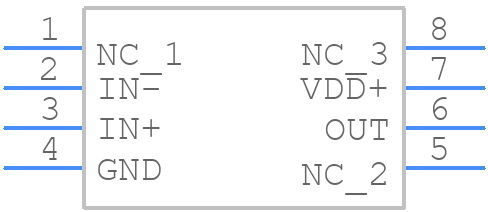

Use the download button to access the TLV2451ID schematic symbol, PCB footprint, and 3D model.
