The maximum power dissipation of the TLV2461CD is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the PDIP package, it is 450mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, it is essential to ensure that the layout is well-designed, with short leads and minimal parasitic capacitance.
The recommended input common-mode voltage range for the TLV2461CD is from VCC- to VCC+ - 1.5V. Operating the device outside of this range may result in reduced performance, increased distortion, or even oscillations. It is essential to ensure that the input common-mode voltage remains within this range to maintain optimal performance.
While the TLV2461CD can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability (±20mA). Texas Instruments offers dedicated comparator devices, such as the TLV7031, which are specifically designed for comparator applications and offer faster response times and higher output current drive capabilities.
The TLV2461CD has internal ESD protection diodes, but it is still essential to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag or tube, and avoiding direct contact with the device pins. Additionally, it is recommended to add external ESD protection devices, such as TVS diodes, to the circuit to provide additional protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2461CD Overview

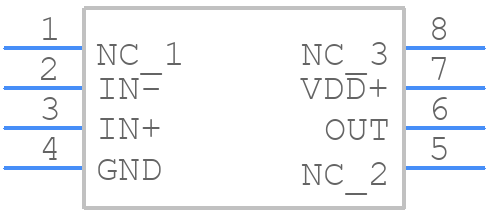

Use the download button to access the TLV2461CD schematic symbol, PCB footprint, and 3D model.
