The maximum power dissipation of the TLV2461CP is dependent on the package type and ambient temperature. For the DIP package, the maximum power dissipation is 840mW at 25°C. For the SOIC package, it is 670mW at 25°C. Refer to the thermal characteristics table in the datasheet for more information.
To ensure stability in a unity-gain buffer configuration, make sure to use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF between the output and the inverting input. This capacitor helps to compensate for the op-amp's internal capacitance and ensures stability.
To minimize noise and EMI, follow these layout and routing guidelines: keep the input and output traces short and away from each other, use a ground plane, and place decoupling capacitors (e.g., 0.1uF ceramic capacitors) close to the op-amp's power pins. Additionally, avoid running high-frequency signals near the op-amp's inputs and outputs.
While the TLV2461CP is an op-amp, it can be used as a comparator in certain applications. However, keep in mind that it is not optimized for comparator operation and may not provide the same level of performance as a dedicated comparator. Additionally, the op-amp's output stage is not designed to drive low-impedance loads, so ensure that the output is properly terminated.
The TLV2461CP has a relatively low input bias current of 1pA. To minimize the effects of input bias current, use a high-impedance input source, and consider using a bias current cancellation technique, such as a current mirror or a bias current compensation network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2461CP Overview

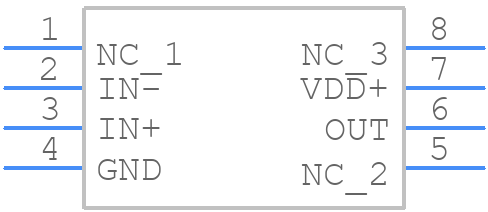

Use the download button to access the TLV2461CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
