Mainland China, Malaysia, Mexico, Philippines, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.075 µA
Bias Current-Max (IIB) @25C:
0.014 µA
Common-mode Reject Ratio-Min:
71 dB
Common-mode Reject Ratio-Nom:
85 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.007 µA
Input Offset Voltage-Max:
2000 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Low-Bias:
NO
Low-Offset:
NO
Micropower:
NO
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
0.8 V/us
Slew Rate-Nom:
1.6 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
1.3 mA
Supply Voltage Limit-Max:
6 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
6400
Voltage Gain-Min:
31622
Wideband:
NO
Width:
3.9 mm
TLV2462IDG4 Frequently Asked Questions (FAQs)
Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, it's essential to keep the input and output traces short and away from noise sources. A 4-layer PCB with a solid ground plane is also recommended.
To prevent latch-up and ensure proper operation, it's recommended to power up the op-amp's supply pins (VCC and VEE) simultaneously, and power down the supply pins in the reverse order. Additionally, ensure that the input signals are within the recommended voltage range during power-up and power-down.
The TLV2462IDG4 can drive capacitive loads up to 1nF without oscillation or instability. However, it's recommended to use a series resistor (Rs) to dampen the capacitive load and prevent oscillation. The value of Rs depends on the capacitive load and the desired frequency response.
To reduce noise and EMI, use a low-noise power supply, decouple the op-amp's supply pins with 0.1uF and 10uF capacitors, and use a shielded enclosure. Additionally, keep the op-amp's input and output traces short and away from noise sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
The TLV2462IDG4 is specified to operate from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2462IDG4 Overview

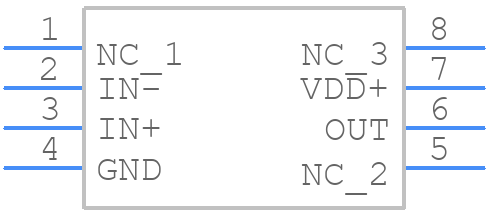

Use the download button to access the TLV2462IDG4 schematic symbol, PCB footprint, and 3D model.
