TLV2464AQPWRQ1 - Texas Instruments

Description: Operational Amplifiers - Op Amps Auto Cat Lo Pwr Rail RailInpt Output

Download TLV2464AQPWRQ1 Model
Schematic

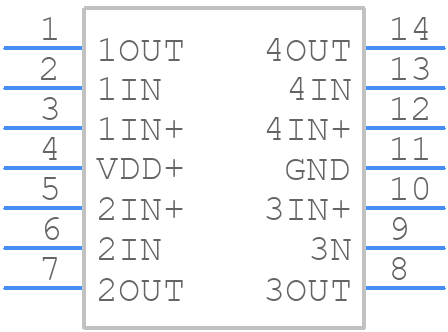

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2464AQPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TLV2464AQPWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TLV2464AQPWRQ1 Details

  • Manufacturer Part Number:

    TLV2464AQPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000075 µA

  • Bias Current-Max (IIB) @25C:

    0.014 µA

  • Common-mode Reject Ratio-Min:

    71 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.007 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    0.8 V/us

  • Slew Rate-Nom:

    1.6 V/us

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    6400

  • Voltage Gain-Min:

    31622

  • Wideband:

    NO

  • Width:

    4.4 mm

TLV2464AQPWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV2464AQPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the op-amp close to the signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
  • To choose the correct gain resistors, you need to consider the desired gain, input impedance, and output impedance. Use the gain equation provided in the datasheet and select resistors that meet the desired specifications. You can also use online calculators or simulation tools to help with the selection.
  • The maximum power dissipation of the TLV2464AQPWRQ1 is 670mW. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout). Make sure to keep the junction temperature below 150°C and use a suitable heat sink if necessary.
  • Yes, the TLV2464AQPWRQ1 can be used as a comparator. To do so, connect the inverting input to the reference voltage, and the non-inverting input to the signal to be compared. Use a pull-up resistor on the output to Vcc, and a pull-down resistor to GND. The output will be high if the signal is above the reference voltage and low if it's below.
  • To reduce noise and oscillations, use a low-pass filter on the input, add decoupling capacitors on the power supply lines, and use a ground plane on the PCB. Additionally, minimize the length of the input traces, and use shielding or guard rings around the op-amp to reduce electromagnetic interference.
