Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from digital signals, and use a solid ground plane to reduce noise.
Power up the device in the following sequence: VCC, VREF, and then VIN. Power down in the reverse sequence. Ensure that VREF is stable before applying VIN, and that VIN is removed before powering down VREF and VCC.
The TLV2464CPW can drive up to 1nF of capacitive load. Exceeding this limit can cause oscillation or instability. To ensure stability, add a series resistor (Rs) to the output, with Rs ≥ 20Ω for capacitive loads ≤ 1nF.
Use a low-ESR capacitor (e.g., ceramic or film) for the bypass capacitor (CBYP). Keep the input and output traces short and matched, and use a ground plane to reduce noise. Additionally, consider adding a series resistor (Rs) to the output to improve stability.
The TLV2464CPW's performance is affected by temperature, with changes in offset voltage, gain, and bandwidth. To ensure reliable operation, consider the device's temperature coefficients, and use thermal management techniques such as heat sinking or thermal interface materials.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2464CPW Overview

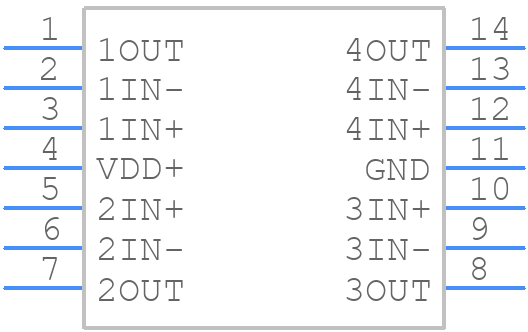

Use the download button to access the TLV2464CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
