Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, it's essential to keep the input and output traces short and away from noise sources. A good layout practice is to use a ground plane and keep the signal traces on the top layer.
To prevent latch-up and ensure proper operation, it's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. A power-up sequence of VCC, then inputs, and a power-down sequence of inputs, then VCC is recommended.
The TLV2474IPWPR can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause oscillations or instability. If a larger capacitive load is required, consider adding a series resistor to dampen the load.
To minimize noise and EMI, use a low-impedance power supply, decouple the VCC pin with a 0.1 μF capacitor, and keep the op-amp's input and output traces short and away from noise sources. Additionally, consider using shielding and grounding techniques to reduce radiated emissions.
The TLV2474IPWPR is specified to operate from -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2474IPWPR Overview

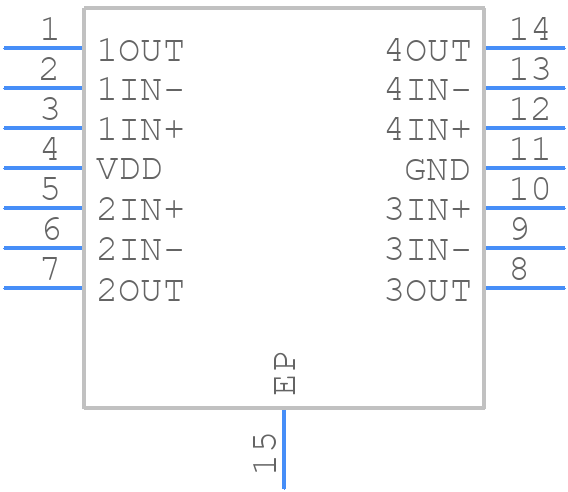

Use the download button to access the TLV2474IPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24,
or try a keyword search, such as Operational Amplifiers
