The maximum power dissipation of the TLV271IS-13 is dependent on the ambient temperature and the package type. For the SOIC-8 package, the maximum power dissipation is 670mW at 25°C ambient temperature. However, it's recommended to derate the power dissipation to ensure reliable operation.
While the TLV271IS-13 is an op-amp, it can be used as a comparator in certain applications. However, it's essential to note that the TLV271IS-13 is not optimized for comparator applications and may not provide the same level of performance as a dedicated comparator. Additionally, the output stage of the TLV271IS-13 is not designed to drive low-impedance loads, which may be required in some comparator applications.
The input impedance of the TLV271IS-13 is not explicitly stated in the datasheet. However, the input impedance can be estimated based on the input bias current and the input voltage range. Typically, the input impedance of the TLV271IS-13 is in the order of several hundred kilohms to several megohms.
The TLV271IS-13 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consult the datasheet and application notes to ensure that the device can operate reliably in the target temperature range.
The recommended layout and PCB design for the TLV271IS-13 involve keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. It's also essential to follow good PCB design practices, such as minimizing parasitic inductance and capacitance, and using a low-impedance power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV271IS-13 Overview

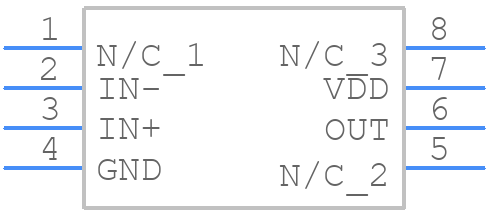

Use the download button to access the TLV271IS-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV27,
or try a keyword search, such as Operational Amplifiers
